Introduction
Some users have requested the ability to easily view update details directly within the system. This article demonstrates how to implement a custom solution to meet that requirement.

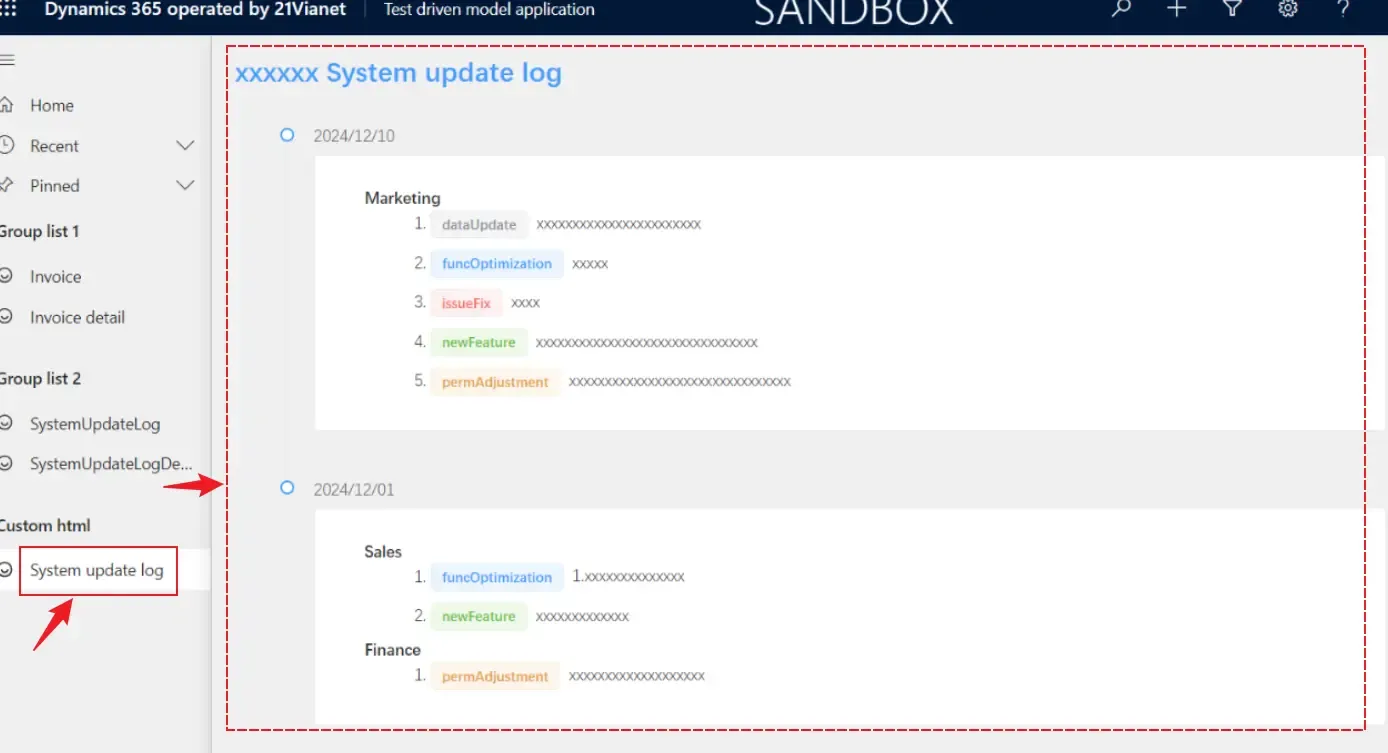

Result
Concept
The approach is to group records by Date and then break them down by Update Details. To achieve this, create two entities: Log and Log Detail, and then develop a custom HTML page to retrieve and display the data.
Implementation
P.S.: The required fields for entities can be referenced from the code sample below.
- Create the System Update Log entity
- Create the System Update Log Detail entity
- Create a custom HTML page
Usage
- Create the System Update Log entity
- Create the System Update Log Detail entity
- Create

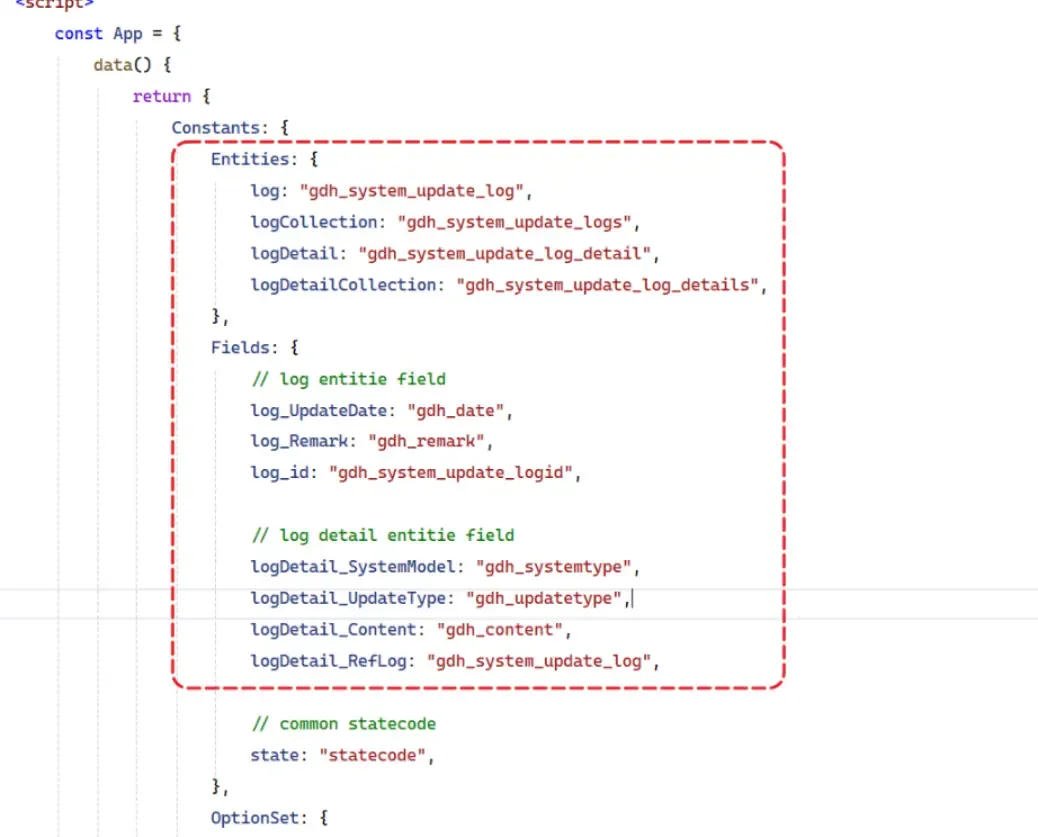

SystemUpdateLog_v1.html(see code sample below), then replace the logical names of entities and fields with the ones from your own environment
-

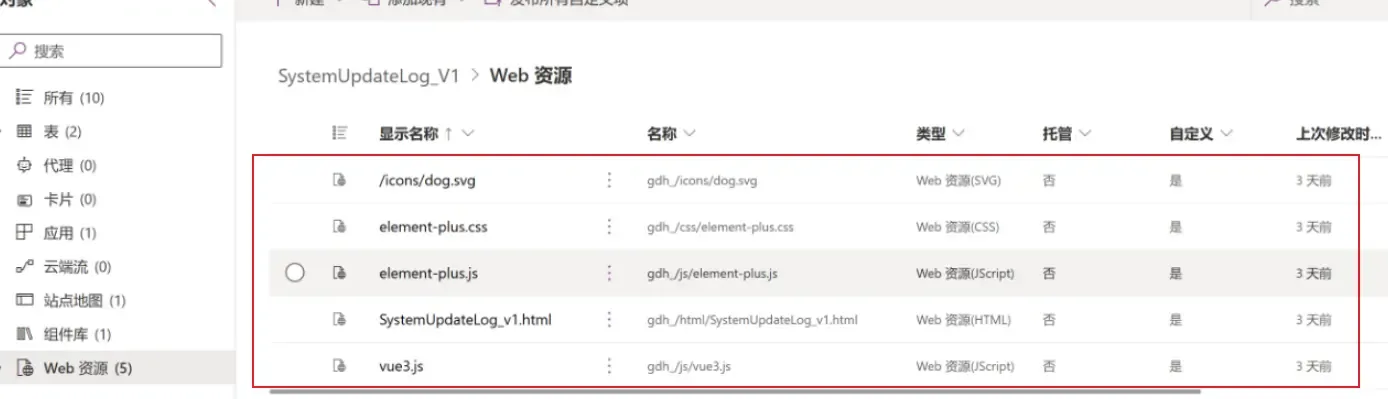

Upload the following Web Resources:
vue3.jselement-plus.jselement-plus.css
These Web Resources can also be downloaded from my GitHub repository: GitHub Repository Link
Path: Blog.D365/Blog.D365.WebResources/lib
Code
SystemUpdateLog_v1.html
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width,initial-scale=1.0" />
<link href="../css/element-plus.css" rel="stylesheet" />
<title>xxxxxx System update log</title>
<style>
body {
margin: 0;
padding: 0;
}
.log-entry {
margin-bottom: 20px;
}
.system-section {
margin-left: 20px;
margin-top: 10px;
}
.update-item {
margin-left: 20px;
margin-bottom: 10px;
list-style-type: decimal;
}
.update-item span {
font-weight: bold;
}
h3,
h4 {
margin: 3px;
}
.el-timeline-item__timestamp {
font-size: 14px;
color: #666;
}
</style>
</head>
<body>
<div id="app">
<el-container>
<el-header>
<h2 style="color: #409EFF; ">xxxxxx System update log</h2>
</el-header>
<el-main>
<el-timeline>
<el-timeline-item v-for="log in fLogData" :key="log.log_id" :timestamp="log.date" placement="top" type="primary" hollow="true">
<el-card shadow="hover" style="margin-bottom: 20px;">
<div v-for="system in getSystems(log.details)" :key="system" class="system-section">
<h4>{{ system }}</h4>
<ul>
<li v-for="(detail, index) in getDetailsBySystem(log.details, system)" :key="index"
class="update-item">
<el-tag :type="getTagType(detail.updateType)">{{ detail.updateType}}</el-tag> {{ detail.content }}
</li>
</ul>
</div>
</el-card>
</el-timeline-item>
</el-timeline>
</el-main>
<el-footer></el-footer>
</el-container>
</div>
<script src="../js/vue3.js"></script>
<script src="../js/element-plus.js"></script>
<script>
const App = {
data() {
return {
Constants: {
Entities: {
log: "gdh_system_update_log",
logCollection: "gdh_system_update_logs",
logDetail: "gdh_system_update_log_detail",
logDetailCollection: "gdh_system_update_log_details",
},
Fields: {
// log entitie field
log_UpdateDate: "gdh_date",
log_Remark: "gdh_remark",
log_id: "gdh_system_update_logid",
// log detail entitie field
logDetail_SystemModel: "gdh_systemtype",
logDetail_UpdateType: "gdh_updatetype",
logDetail_Content: "gdh_content",
logDetail_RefLog: "gdh_system_update_log",
// common statecode
state: "statecode",
},
OptionSet: {
stateOption: {
Active: 0,
InActive: 1
}
}
},
fLogData: [],
};
},
created() {
this.init();
},
methods: {
init() {
let fetch = `
<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
<entity name="${this.Constants.Entities.log}">
<attribute name="${this.Constants.Fields.log_id}" />
<attribute name="${this.Constants.Fields.log_UpdateDate}" />
<filter>
<condition attribute="${this.Constants.Fields.state}" operator="eq"
value="${this.Constants.OptionSet.stateOption.Active}" />
</filter>
<order attribute="${this.Constants.Fields.log_UpdateDate}" descending="true" />
<link-entity name="${this.Constants.Entities.logDetail}" from="${this.Constants.Fields.logDetail_RefLog}"
to="${this.Constants.Fields.log_id}" link-type="inner" alias="logDetail">
<attribute name="${this.Constants.Fields.logDetail_Content}" />
<attribute name="${this.Constants.Fields.logDetail_SystemModel}" />
<attribute name="${this.Constants.Fields.logDetail_UpdateType}" />
<filter>
<condition attribute="${this.Constants.Fields.state}" operator="eq"
value="${this.Constants.OptionSet.stateOption.Active}" />
</filter>
<order attribute="${this.Constants.Fields.logDetail_UpdateType}" descending="false" />
<order attribute="createdon" descending="true" />
</link-entity>
</entity>
</fetch>`;
let results = this.RetrieveRecordsUsingFetchXml(this.Constants.Entities.logCollection, encodeURI(fetch));
if (results && results.value && results.value.length > 0) {
this.fLogData =
results.value.reduce((acc, item) => {
const existingLog = acc.find(log => log["log_id"] === item[this.Constants.Fields.log_id]);
if (existingLog) {
existingLog.details.push({
systemModel: item[`logDetail.${this.Constants.Fields.logDetail_SystemModel}@OData.Community.Display.V1.FormattedValue`],
updateType: item[`logDetail.${this.Constants.Fields.logDetail_UpdateType}@OData.Community.Display.V1.FormattedValue`],
content: item[`logDetail.${this.Constants.Fields.logDetail_Content}`],
});
} else {
acc.push({
log_id: item[this.Constants.Fields.log_id],
date: item[this.Constants.Fields.log_UpdateDate + "@OData.Community.Display.V1.FormattedValue"],
details: [
{
systemModel: item[`logDetail.${this.Constants.Fields.logDetail_SystemModel}@OData.Community.Display.V1.FormattedValue`],
updateType: item[`logDetail.${this.Constants.Fields.logDetail_UpdateType}@OData.Community.Display.V1.FormattedValue`],
content: item[`logDetail.${this.Constants.Fields.logDetail_Content}`],
},
],
});
}
return acc;
}, []);
}
},
getSystems(details) {
const systems = [];
details.forEach(detail => {
if (!systems.includes(detail.systemModel)) {
systems.push(detail.systemModel);
}
});
return systems;
},
getDetailsBySystem(details, system) {
return details.filter(detail => detail.systemModel === system);
},
getTagType(updateType) {
const typeMap = {
'功能优化': 'primary',
'新添功能': 'success',
'数据更新': 'info',
'权限调整': 'warning',
'问题修复': 'danger',
'funcOptimization': 'primary',
'newFeature': 'success',
'dataUpdate': 'info',
'permAdjustment': 'warning',
'issueFix': 'danger'
};
return typeMap[updateType] || 'info';
},
// ============================================
/** [Begin] CRM function */
// ============================================
/** Common method to retrive records in 'Sync' mode based on custom query. */
RetrieveRecordsUsingFetchXml(lEntityName, lFetchXml) {
let lResponse = null;
let lXMLHttpRequest = new XMLHttpRequest();
lXMLHttpRequest.open("GET", this.GetClientUrl() + "/api/data/v9.2/" + lEntityName + "?fetchXml=" + lFetchXml, false);
lXMLHttpRequest.setRequestHeader("OData-MaxVersion", "4.0");
lXMLHttpRequest.setRequestHeader("OData-Version", "4.0");
lXMLHttpRequest.setRequestHeader("Accept", "application/json");
lXMLHttpRequest.setRequestHeader("Content-Type", "application/json; charset=utf-8");
lXMLHttpRequest.setRequestHeader("Prefer", "odata.include-annotations=\"*\"");
lXMLHttpRequest.onreadystatechange = function () {
if (this.readyState === 4 && this.status === 200) {
lXMLHttpRequest.onreadystatechange = null;
lResponse = JSON.parse(this.response);
}
};
lXMLHttpRequest.send();
return lResponse;
},
GetClientUrl() {
let lGlobalContext = "";
try {
lGlobalContext = Xrm.Utility.getGlobalContext();
}
catch (e) {
lGlobalContext = parent.Xrm.Utility.getGlobalContext();
}
if (lGlobalContext !== null) {
return lGlobalContext.getClientUrl();
}
return null;
}
// ============================================
/** [End] CRM function */
// ============================================
}
};
const app = Vue.createApp(App);
app.use(ElementPlus);
app.mount("#app");
</script>
</body>
</html>
